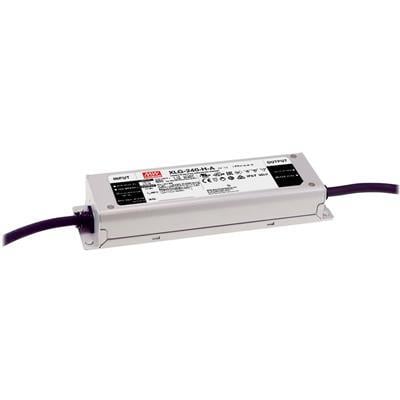

| Model | XLG-240-L | ||
| Output | Rated Current | 700mA | |
| Constant Current Region | 178-342V | ||
| Rated Power | 239.4W | ||
| Full Power Current Range | 700-1050mA | ||
| Open Circuit Voltage (Max.) | 370V | ||
| Current ADJ. Range | 350-1050mA | ||
| Kasa Ölçüsü: 219*63*36mm |
|
(L*W*H) |
| Type | Function |
| A | Io adjustable via built-in potentiometer |
| AB | Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) |
| Blank | Io and Vo fixed. (For harsh envirenment) |
| Note: | 12V and 24V models without the AB Type |
