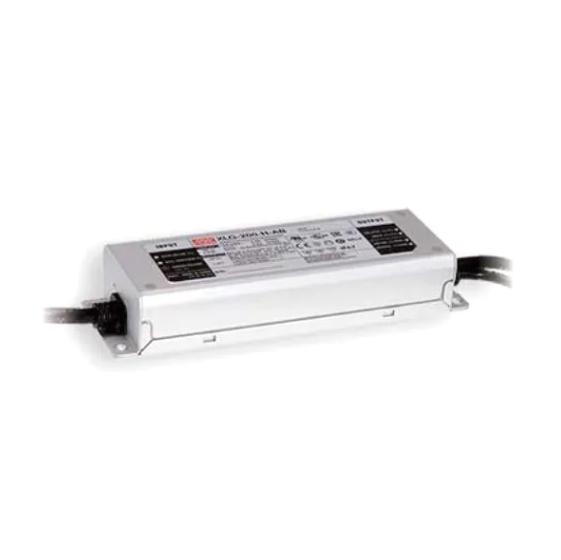

| Model | XLG-200-24 | ||
| Output | DC VOLTAGE | 24V | |
| Constant Current Region | 16.8-24V | ||
| Rated Current | 8.3A | ||
| Rated Power | 199.2W | ||
| Ripple & Noise (max.) | 240mVp-p | ||
| Current ADJ. Range | 4.15A-8.3A Adjustable for A/AB-Type only (via the built-in potentiometer) | ||
| Kasa Ölçüsü: 199*63*36mm |
|
(L*W*H) |
| Type | Function |
| A | Io adjustable via built-in potentiometer |
| AB | Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) |
| Blank | Io and Vo fixed. (For harsh envirenment) |
| Note: | 12V and 24V models without the AB Type |
