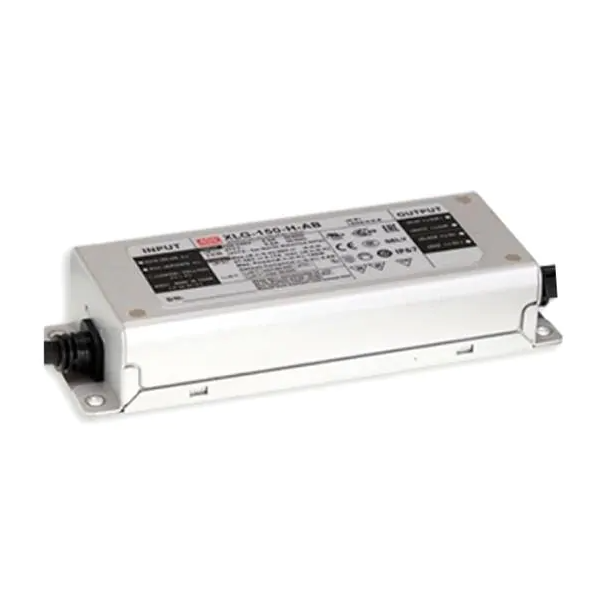

| Model | XLG-150-M | ||
| Output | Rated Current | 1400mA | |
| Constant Current Region | 60-107V | ||
| Rated Power | 150W | ||
| Full Power Current Range | 1400-2100mA | ||
| Open Circuit Voltage (Max.) | 115V | ||
| Current ADJ. Range | 700-2100mA | ||
| Kasa Ölçüsü: 140*63*32mm |
|
(L*W*H) |
| Type | Function |
| A | Io adjustable via built-in potentiometer |
| AB | Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) |
| Blank | Io and Vo fixed. (For harsh envirenment) |
| Note: | 12V and 24V models without the AB Type |
