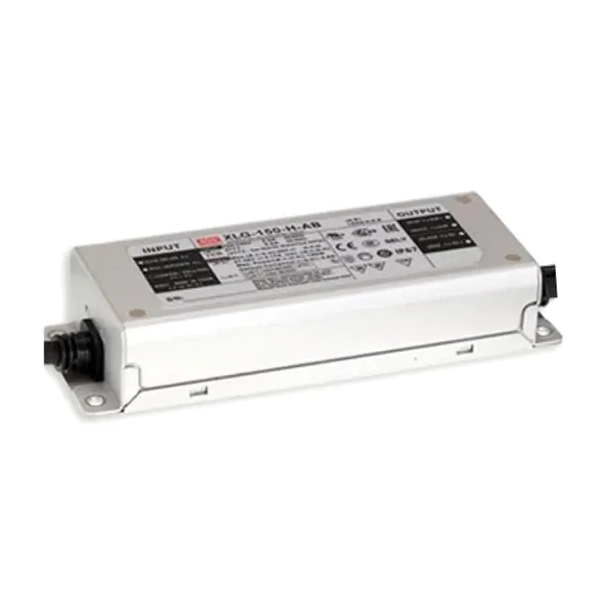

| Model | XLG-150-12 | ||
| Output | DC VOLTAGE | 12V | |
| Constant Current Region | 8.4-12V | ||
| Rated Current | 12.5A | ||
| Rated Power | 150W | ||
| Ripple & Noise (max.) | 150mWp-p | ||
| Current ADJ. Range | 6.5A-12.5A Adjustable for A/AB-Type only (via the built-in potentiometer) | ||
| Kasa Ölçüsü: 180*63*36mm |
|
(L*W*H) |
| Type | Function |
| A | Io adjustable via built-in potentiometer |
| AB | Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) |
| Blank | Io and Vo fixed. (For harsh envirenment) |
| Note: | 12V and 24V models without the AB Type |
