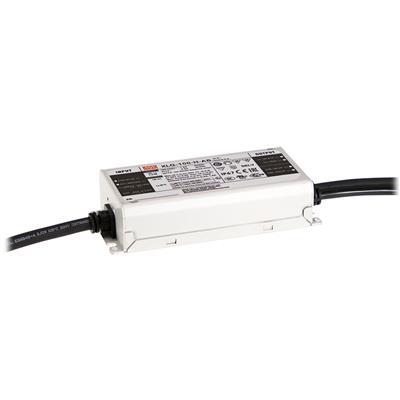

XLG-100-H-A 27~56Vdc 1750~2780mA ADJ Meanwell
KDV Dahil Fiyatı
1.230,37 TL
(0) Yorum | Yorum Yap
Model | XLG-100-H | ||
Output | Rated Current | 2100mA | |
Constant Current Region | 27-56V | ||
Rated Power | 100W | ||
Full Power Current Range | 1750-2780mA | ||
Open Circuit Voltage (Max.) | 60V | ||
Current ADJ. Range | 875-2780mA |
Kasa Ölçüsü: 140*63*32mm |
(L*W*H) |
Type | Function |
A | Io adjustable via built-in potentiometer |
AB | Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) |
Blank | Io and Vo fixed. (For harsh envirenment) |
Note: | 12V and 24V models without the AB Type |
