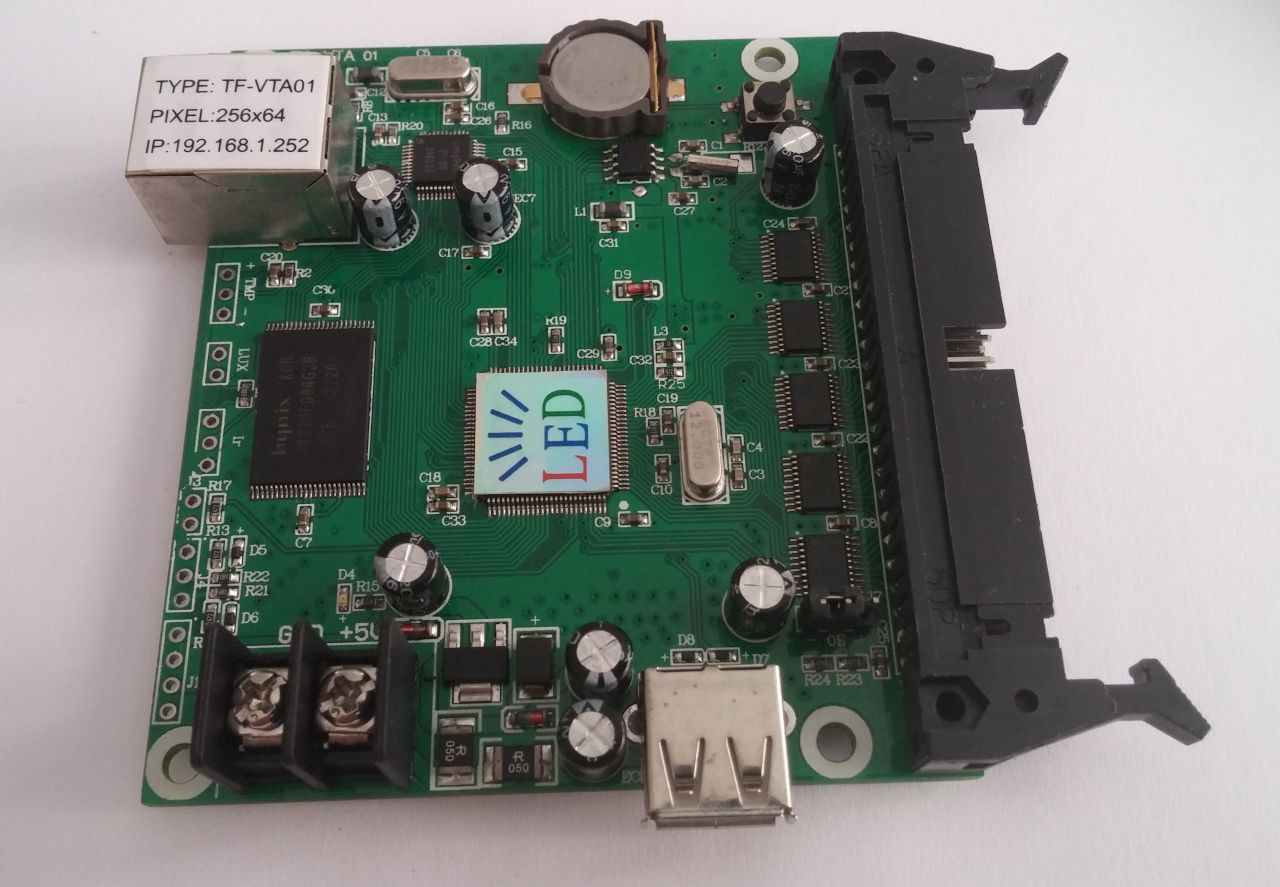

TF-VTA P10 PANEL KONTROL KARTI
Kategori
Marka
Stok Kodu
TF-VTA P10 PANEL KONTROL KARTI
*275,34 TL den başlayan taksitlerle!!
KDV Dahil Fiyatı
1.446,76 TL
(0) Yorum | Yorum Yap
Ürün Özellikleri
Pixel: Full color: 256x64 @ 24bit true color; 256x128 @ 4096 colors Double color: 192x128 @ 24bit true color; 384x128 @ 4096 colors
Pixel: Full color: 256x64 @ 24bit true color; 256x128 @ 4096 colors Double color: 192x128 @ 24bit true color; 384x128 @ 4096 colors
Technical parameters
Model
TF-VTA01(support 16 multi- zones display)
Communication port
USB driver+LAN/Enthernet port,support LAN/enthernet port automatic searching,support U disk program updates
USB driver function
U disk program update, U disk brightness adjustment, U disk setting making program. Can be stored as a file format and do not effect the original document. SD card/mini-SD card is Compatible when using USB.
Network function
Support network automatic searching. Default IP:192.168.1.252 (With router,IP can be searched automaticly),10M/100M auto adjust
Function introduction
Multi-area display, Colorful Borders, multi-function LED display asynchronous control card
Usage
indoor/outdoor
Timer
HH/MM/SS , Analog Clock, timing,countdown,clock. Font size can be adjustable,time zone setting is acceptable. Support multiple time zones display
Pixel
Full color: 256x64 @ 24bit true color; 256x128 @ 4096 colors
Double color: 192x128 @ 24bit true color; 384x128 @ 4096 colors
Ports
1 group of 50pin
Scanning mode
support 1/16,1/8,1/4, 1/2,;support static scan of single color and double color module.
Storage
512M
Program capacity
Maximum 200 Programs, each programsupports 16multi-zones simultaneous display,each image-text supports max 200 messages
Display
rain, fountain, scroll, etc.45 kinds in all.
Border
support various colorful borders & customized image borders
Media/Image format
support images and videos ( BMP,JPG,GIF,WMF,ICO,AVI,MP4,MPG,RMVB......)
Brightness
16 levels, support manual adjustment;support 6 fixed times brightness adjustments
Expanded function
Temperature,Temperature&humidity,Auto brightness
Screen switch
manual on/off, support 4 fixed times screen switch setting
Test button
test buttons on-board, can switchover to test mode and color test mode
Not: Ürün test edilerek gönderilmektedir. Kablolama ve adaptör voltajlarına dikkat ediniz. Ters yönde voltaj verilmesinde ve 5 volt üzerinde voltaj verildiğinde arızalanır. Geri iadesi ve garantisi yoktur. Uygun şartlarda kullanıldığında uzun ömürlüdür.
Model
TF-VTA01(support 16 multi- zones display)
Communication port
USB driver+LAN/Enthernet port,support LAN/enthernet port automatic searching,support U disk program updates
USB driver function
U disk program update, U disk brightness adjustment, U disk setting making program. Can be stored as a file format and do not effect the original document. SD card/mini-SD card is Compatible when using USB.
Network function
Support network automatic searching. Default IP:192.168.1.252 (With router,IP can be searched automaticly),10M/100M auto adjust
Function introduction
Multi-area display, Colorful Borders, multi-function LED display asynchronous control card
Usage
indoor/outdoor
Timer
HH/MM/SS , Analog Clock, timing,countdown,clock. Font size can be adjustable,time zone setting is acceptable. Support multiple time zones display
Pixel
Full color: 256x64 @ 24bit true color; 256x128 @ 4096 colors
Double color: 192x128 @ 24bit true color; 384x128 @ 4096 colors
Ports
1 group of 50pin
Scanning mode
support 1/16,1/8,1/4, 1/2,;support static scan of single color and double color module.
Storage
512M
Program capacity
Maximum 200 Programs, each programsupports 16multi-zones simultaneous display,each image-text supports max 200 messages
Display
rain, fountain, scroll, etc.45 kinds in all.
Border
support various colorful borders & customized image borders
Media/Image format
support images and videos ( BMP,JPG,GIF,WMF,ICO,AVI,MP4,MPG,RMVB......)
Brightness
16 levels, support manual adjustment;support 6 fixed times brightness adjustments
Expanded function
Temperature,Temperature&humidity,Auto brightness
Screen switch
manual on/off, support 4 fixed times screen switch setting
Test button
test buttons on-board, can switchover to test mode and color test mode
Not: Ürün test edilerek gönderilmektedir. Kablolama ve adaptör voltajlarına dikkat ediniz. Ters yönde voltaj verilmesinde ve 5 volt üzerinde voltaj verildiğinde arızalanır. Geri iadesi ve garantisi yoktur. Uygun şartlarda kullanıldığında uzun ömürlüdür.
Bu ürüne ilk yorumu siz yapın! Puan kazanın...
